6000 tons/year automatic coating manufacturing equipment

6000 tons/year automatic coating manufacturing equipment

HYE-6000 automatic coating manufacturing equipment could produce 6000 tons per year water base paint, semi-automatic or fully automatic for your choice.

  • lead time:

    30 days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • color:

    red
  • MOQ:

    1
products details

Double Layers Dispersing Disc


The key part of Acrylic resin Production Plant is the disperser and the key part of disperser is dispersing disc.Thus, Dispersing disc is very important to improve the dispersing effeciency. Double layer dispersing disc was adopted high wear-resistance material with high shear capacity and high speed.Efficiency of double dispersing disc is several times more than traditional type.
HYE-6000 Acrylic resin Production Plant



High-precision Colour Mixer


The colour mixing process of 6000 tons/year automatic coating manufacturing equipment controlled by computer, avoids the cleaning of huge tanks, saves labour and time, improves the efficiency and achieves zero release. Automatically select, measure and inject, high automation, easy
operation and simple maintenance. The packing tank position controlled by photoelectric sensor, more precise

and reliable.

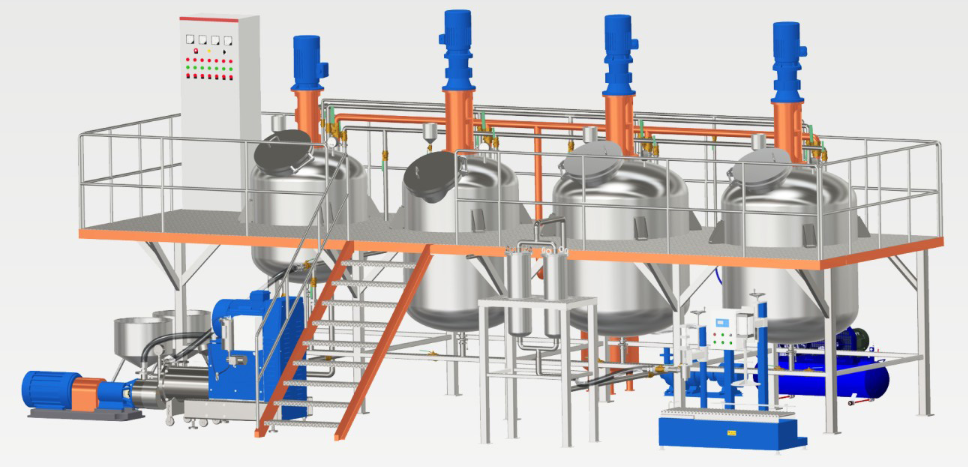

HYE-6000 paint production line equipment


HYE-6000 automated paint line


Hefei Huayun Machinery Manufacturing Co., Ltd. is an emerging enterprise specializing in the manufacture of fluid machinery equipment,providing other high-quality water paint complete production making equipment and so on. We are seeking long-term partners,welcome to join us!
