0-2800L/h Industrial Perstaltic Hose Pump

0-2800L/h Industrial Perstaltic Hose Pump

Huayun Peristaltic hose pump , no need for lubrication oil & glycerin. Capacity from 0-2800L/h, Maximum discharge pressure 1.6Mpa.

  • item no.:

    IHP32Z
  • lead time:

    7-10days
  • product orgin:

    china
  • shipping port:

    Shanghai
  • color:

    red
  • MOQ:

    1
products details

Peristaltic Hose Pump Features:

-Maximum working pressure can reach to 1.6Mpa.

-Huayun slurry peristaltic pump uses could run with dry condition, allowing forward and reverse rotation without causing any problem.

-No need for any expensive auxiliary ,check valve,etc.

-Easy to maintain,short downtime.

-Effectively transfer of corrosive materials, such as acid & alkali materials,etc.


Food grade Peristaltic hose pump

Peristaltic Hose Pump Working Principle:

Specially made rubber hose with smooth outer & inner surface and high strength is installed in the mini peristaltic pump chamer. The rotation and squeezing force of roller will force the flow from inlet to outlet without back flow. After transferring the material out, the squeezed hose will return to normal shape from deformation by the elasticity of hose. The repetation of these actions will make the pump continuously work.


slurry peristaltic pump uses

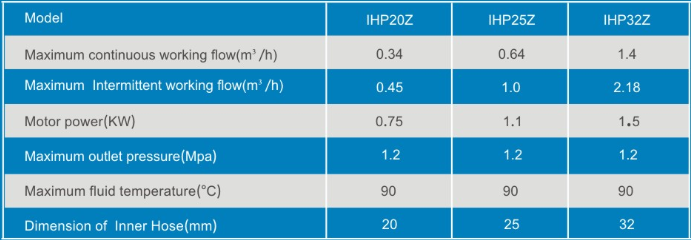

Products Models IHP20Z-IHP32Z.

mini peristaltic pump
