Small hose mortar pump,used in various industries including mining, paper &pulp, industrial applications,chemical transportation, food & beverage,etc.
item no.:
IHP50Zlead time:
7-10daysproduct orgin:
Chinashipping port:
Shanghaicolor:
redMOQ:
1Hose Pump design
Huayun chemical dosing peristaltic hose pump adopts hollow design,which greatly reduce the weight of pump,use kinetic energy of pump rotor to drive the air circulation in the pump chamber,improve the heat dissipation of pump chamber. The design expand the life of whole Heavy duty peristaltic hose pump.
Additionally, based on the different stress point of hose compression,hollow-out design of top cover could reduce the stress of hose compression. This action increases the life of hose.
Rotor assmbly
The rotor assembly of light mortar peristaltic pump is composed of a spindle , a bracket and a pressure roller.The spindle adopt TU design and has a pressure scale, which is convenient to adjust the discharge pressure of the pump.
The end face of roller adopts the design of plane seal to avoid material contanination to bearing and damage of the roller.

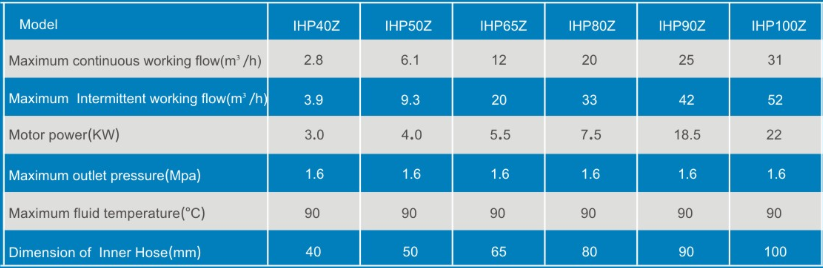

Product models IHP40Z-IHP100Z
previous :
0-2800L/h Industrial Perstaltic Hose Pumpnext :
24000-63000L/h heavy duty double head peristaltic hose pumpIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Peristaltic hose squeeze pump greatly increases flow rate of hose pump, two pumps share motor power and gearbox.
Huayun Peristaltic hose pump , no need for lubrication oil & glycerin. Capacity from 0-2800L/h, Maximum discharge pressure 1.6Mpa.
All of high quality peristaltic hose pump are customized for various motor and gearbox, to meet customers different requirements.
IHP20Z low flow rate peristaltic hose pump, 350L/h-450L/h,stainless steel barb.
0-120L/h low flow rate peristaltic dosing pump meet your requirments of small capacity of pumping.
Huayun hose pump with transparency cover could make you to see the situation of pump clearly when the pump is working.
Peristaltic Pump hose includes NR,EPDM,NBR,F-NR,F-NBR hose,etc
HYC-2000 coating production line could produce the water base paint 2000 tons per year, semi-automatic or fully automatic for your choice.
