High Shear Mixer

Automatic Paint Nano Horizontal Bead mill

Automatic Paint Nano Horizontal Bead mill

Automatic Paint Nano Horizontal Bead mill is normally used in the field where need high requirements of material fineness.such as coating,dyes,inks,pesticides industries,etc.

  • lead time:

    7-10days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • color:

    red
  • MOQ:

    1
products details

Horizontal Bead mill


HYSM disc type Automatic Paint Nano Horizontal Bead mill mainly drives the dispersing shaft for high-speed movement by the motor. Under the action of the dispersing disc, the grinding medium performs high-speed movement, and the friction and shearing force make the material to be ground and dispersed repeatedly. Finally, the grinding medium is separated by the dynamic separator and the screen to make the qualified material flow out from the discharge pipe. Meanwhile the material is pumped into the chamber through the feeding system constantly, thereby realizing long-term continuous grinding work!


Feeding system
It consists of a transfer pump and a pipe. The hose is made of stainless steel and the transfer pump is connected to the chamber.The pump usually uses a pneumatic diaphragm pump, and the flow rate of the pump can be controlled by changing the air pressure.
Grinding cylinder
Huayun horizontal bead mill adopt jacketed chamber with double recycling cooling system, it is able to lower the inner temperature,keep the temperature stable, protect the characteristics of material. There are wheels at the bottom of chamber, so it is easy to move out the chamber for maintenance.

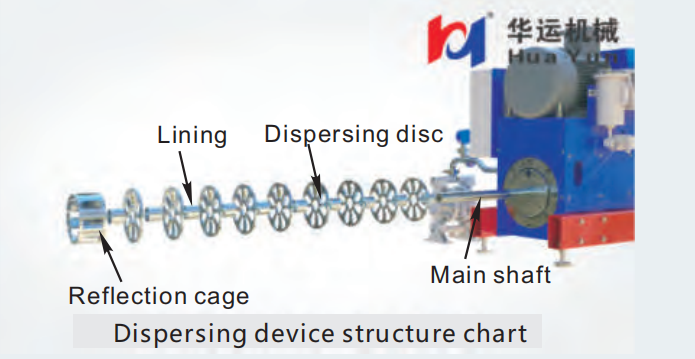

Dispersing device

The dispersing device consist of main shaft, dispersing disc, reflection cage and lining, the main shaft drives dispersing discs, then dispersing discs drive media, makes material grinded and dispersed equably. Reflection cage is installed at front end of main shaft to avoid blocking of medium.

bead mill

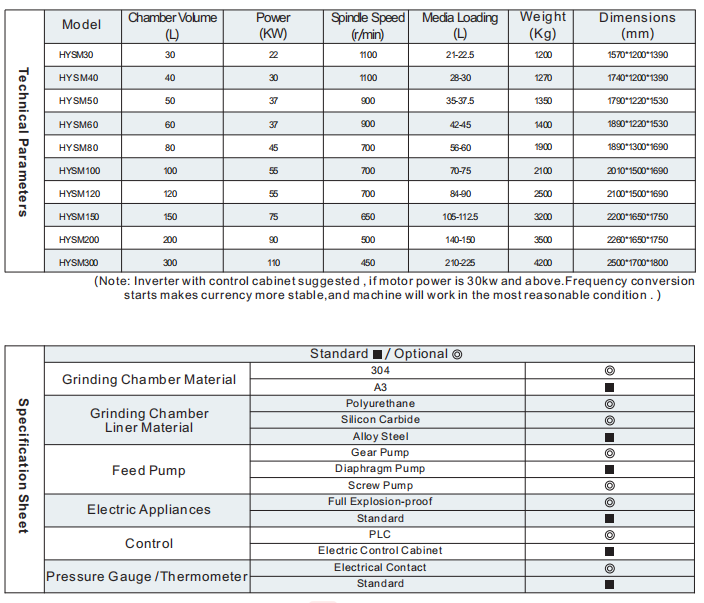

Technical Parameters


sand mill
